| Interface |
Mini USB 2.0 |
|---|
| Button |
WPS Push Button/Software |
| Dimensions ( W x D x H ) |
3.5 x 2.7 x 0.7 in. (90 x 68 x 16.8mm) |
| Antenna Type |
Dual Omni Directional |
| Antenna Gain |
3dBi |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency |
2.400-2.4835GHz |
| Signal Rate |
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity |
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER |
| Transmit Power |
<20dBm(EIRP) |
| Wireless Modes |
Ad-Hoc / Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Advanced Functions |
WMM |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |

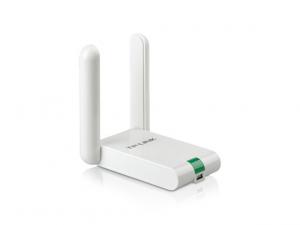

Wireless Adapter TL-WN822N
Resource CD
Quick Installation Guide
1.5m USB Cable |
| System Requirements |
Windows 8.1 32/64bit, Windows 8 32/64bit, Windows 7(32/64bits), Windows Vista(32/64bits),
Windows XP(32/64bits), Mac OS X 10.7~10.10, Linux |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing | |
